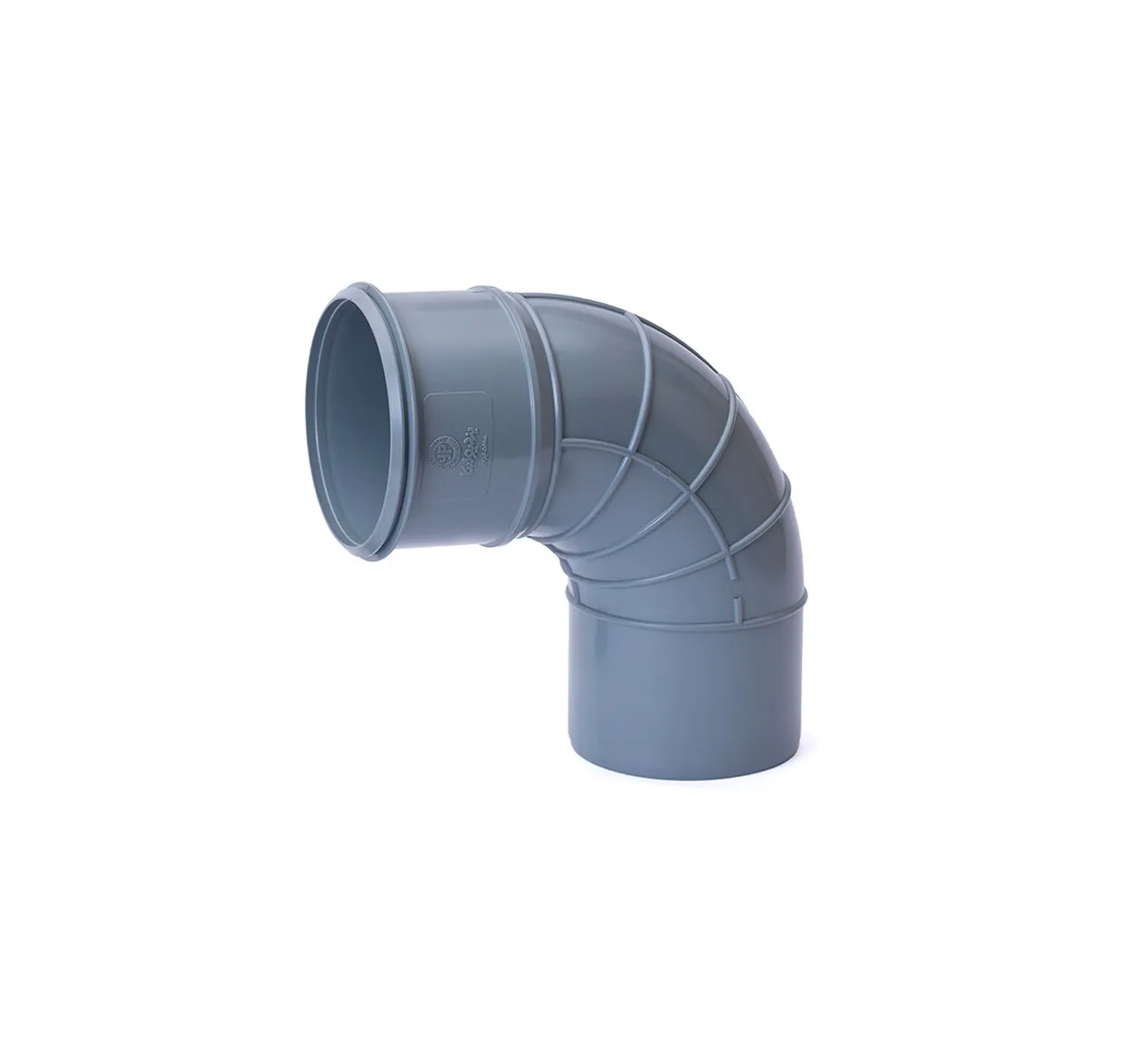

The 87.5 degree elbow is designed in accordance with European standards in such a way that the angle difference of 2.5 degrees compared to 90 degrees causes the installation to tilt from the connection point and the sewage moves faster.
Specification
Elbow 87.5°- One Socket
| Standard |
|---|
| INSO 9119-1 :National |
| BS EN 1329-1 :International |
Features:
- Easy and faster implementation of sewage piping network.
- Chemical-resistant
- No need for heating or welding the pipe and fittings.
- Smooth and polished surface
| Size | Application Area | Wall Thickness (mm) | Application Area | Wall Thickness (mm) | Ring Stiffness (SN) | Color |
|---|---|---|---|---|---|---|
| 63 | B | 3 | * | * | * | gray |
| 110 | BD | 3/2 | BD | 3/2 | 4 | gray |
